Importance of cleaning

A clean metallic surface is necessary for coating. Contamination such as grinding residue, oil or dust weaken the coating’s adhesion.
We offer two different sizes of single-chamber cleaning units; which can be tailored to individual customer needs on request
  • Chamber sizes adapted to our coating units
  • Fully automatic cleaning process including vacuum drying
  • Intuitive touch screen with real-time process parameters
  • Remote diagnosis and maintenance
  • Independent of environmental conditions as the system is closed

V111

  • Chamber volume [mm]: W350 x D390 x H480
  • Loading for shank tools ø10 x 70 [mm]: 504pcs.
  • Max. load: 150kg
  • Cycle times: Approx. 45min

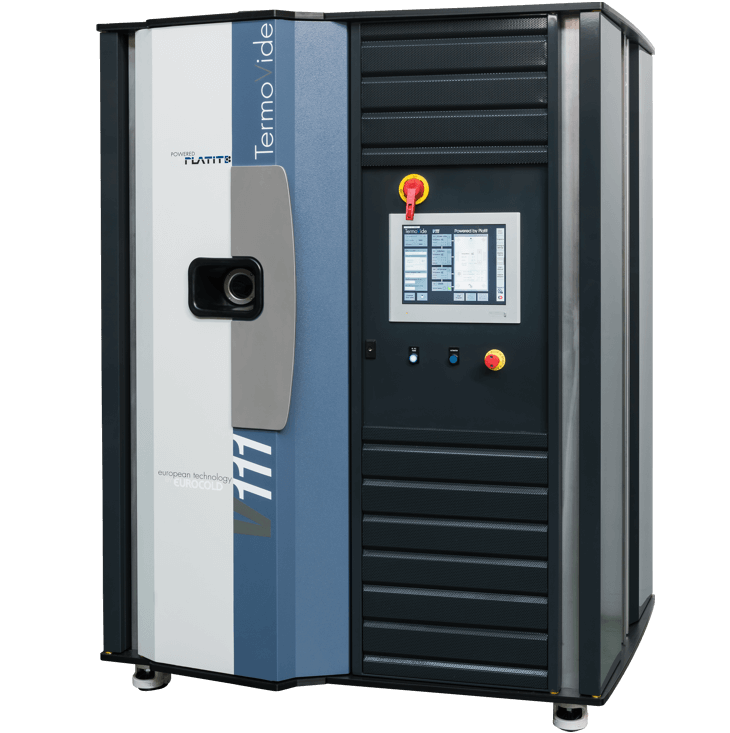

Cleaning unit V111

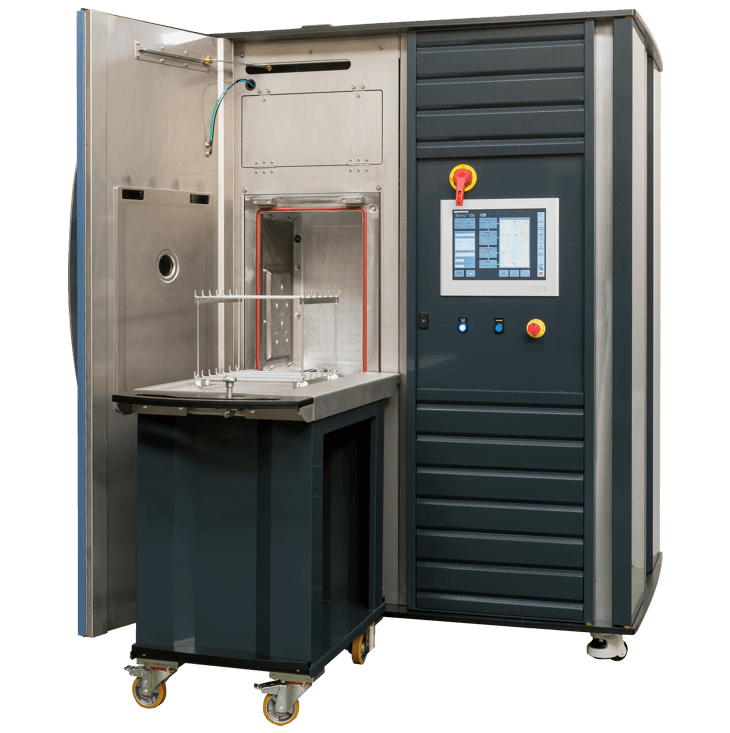

Cleaning unit V111 open

V411

  • Chamber volume [mm]: W500 x D500 x H500
  • Loading for shank tools ø10 x 70 [mm]: 1008pcs.
  • Max. load: 200kg
  • Cycle times: Approx. 45min

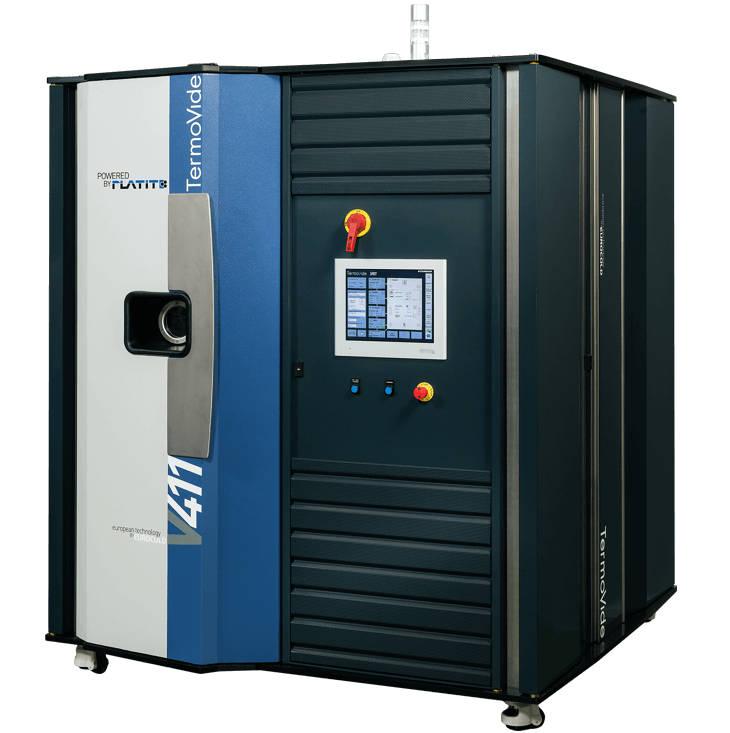

Cleaning unit V411

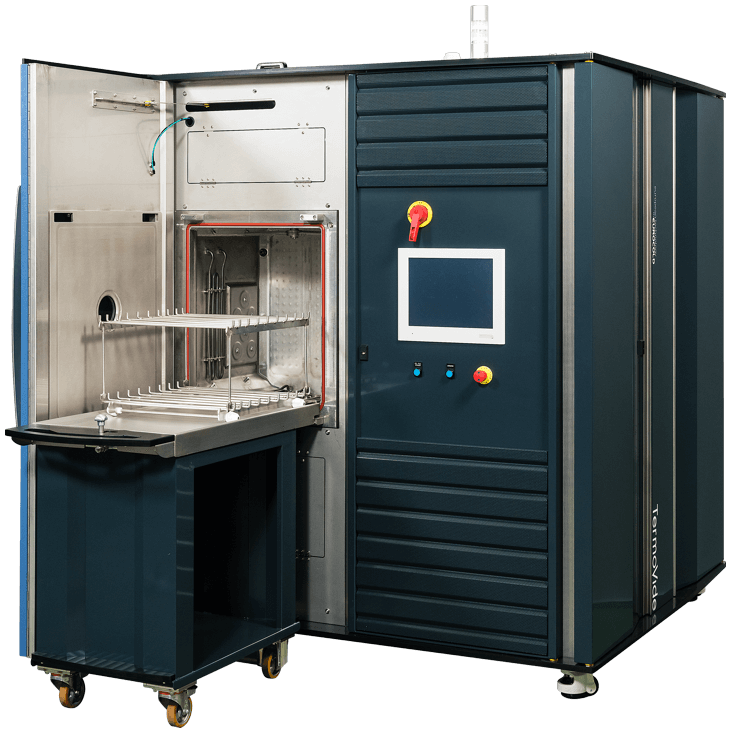

Cleaning unit V411 open

You can find more information about the cleaning procedure in our compendium p.100 - p.103 by clicking here or contacting us directly.
